Create custom fields in Jama Connect

Before you can import relationships (or trace links), you must first create a new custom field in Jama Connect for each item type you're importing. Each field must contain a unique identifier.

Best Practice: When importing many custom fields from DOORS, create a common custom item type that contains all the custom fields. Use this item type only for the initial import, then later convert sets to a standardized set of item types. That way, every imported item includes legacy DOORS information in its version history. To view this information, compare versions.

To create custom fields in Jama Connect:

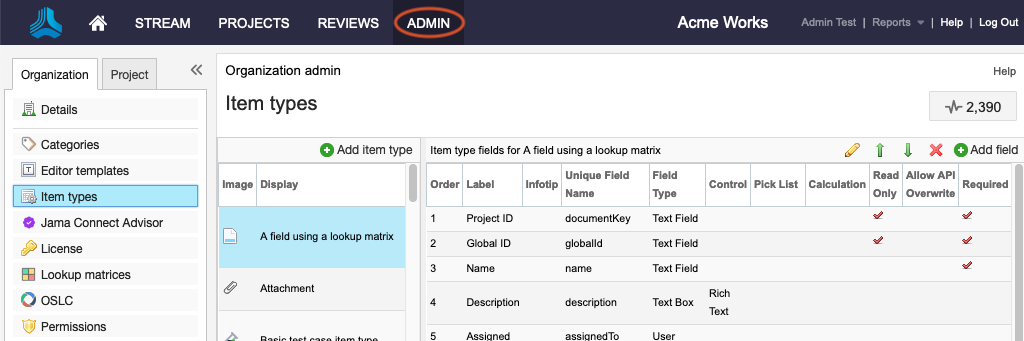

  1. In Jama Connect, select Admin > Organization > Item types.

    Select Admin > Organization > Item types.

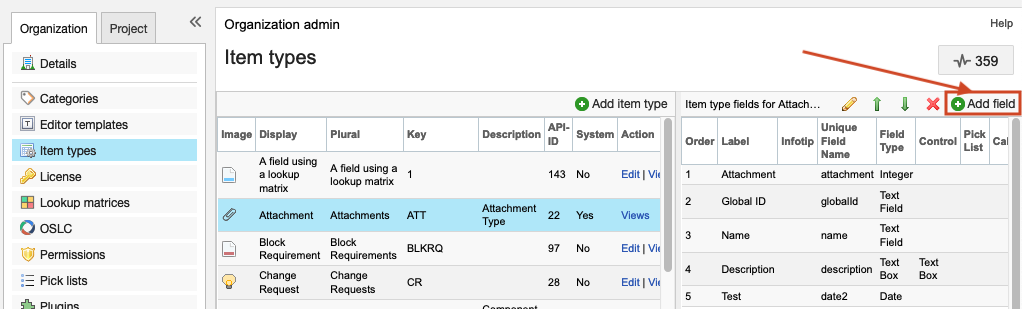

  2. Find the item type you're using for the DOORS import, then select Add field.

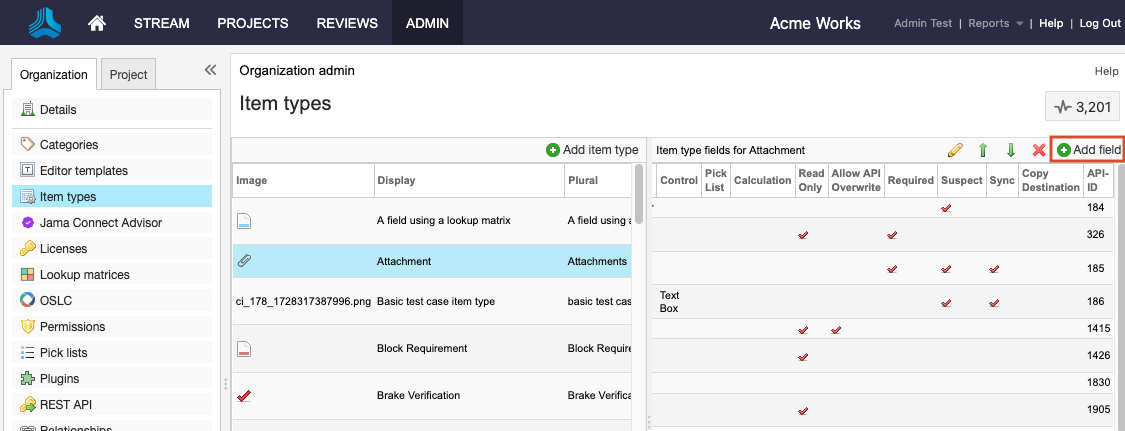

    Select an item type from the list, then select Add field in the top right of the page.

  3. In the Add Field window, complete these options, then select Save.

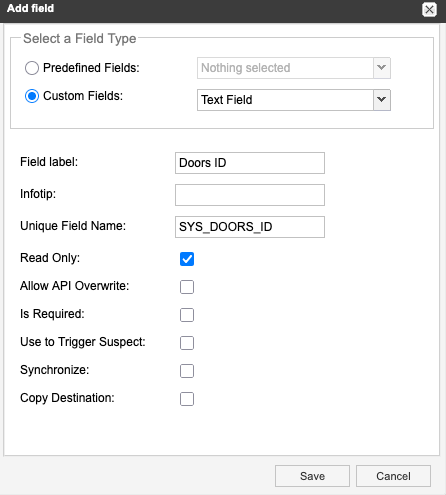

    Options for the Add field window.

    • Select a Field Type — Select Custom Fields, then select Text Field from the drop-down menu.

    • Field label — Enter a name for the field (for example, "DOORS ID").

    • Unique Field Name — Enter "SYS_DOORS_ID." This is case-sensitive and must exactly match the above image.

    • Select Read Only.

This item type can now accept relationships (trace links) imported from DOORS.

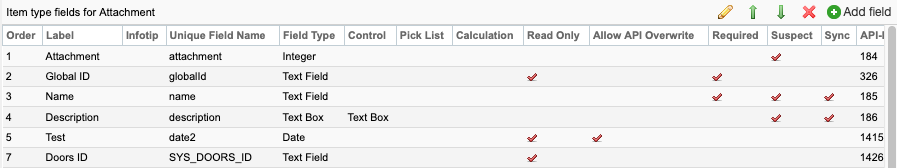

Example results of an item type that can accept relationships imported from DOORS.

Important

The SYS_DOOR_ID field must be created for all the item types you are relating.
