Update the Jama Connect KOTS platform from Longhorn-based deployments to OpenEBS (airgap)

Running the pre-upgrade script prepares the existing environment for the OpenEBS storage configuration required by the target version. Before you can deploy Jama Connect 9.41.x, you must first update the Jama Connect KOTS platform (referred to as an in-place upgrade) to help ensure the platform storage components transition correctly.

Before you can upgrade Jama Connect KOTS platform from 9.0.1–9.0.3 or 8.79.1–8.79.6, you must first run a pre-upgrade script. These versions used Longhorn as the storage solution, while newer versions use OpenEBS.

See also: Updating Embedded Clusters.

Important considerations

  • Jama Connect now uses OpenSearch for indexing and search instead of Elasticsearch. To ensure a successful update process, you must remove the existing Elasticsearch StatefulSets and PVCs, and delete the existing labels from the Elasticsearch nodes. Make note of the Elasticsearch settings (they are removed as part of the update process), so you can refer to them when you update the OpenSearch settings. Instructions for completing these steps are included in this task.

  • If upgrading from Jama Connect 9.0.1–9.0.3 and 8.79.1–8.79.6, make sure that the file system on your primary node/application server has enough free space to support a data migration of the assets associated with your Jama Connect instance. Measure the disk space occupied by the var/lib/longhorn directory (du /var/lib/longhorn) and confirm that the disk has twice that amount available.

  • Expect downtime. Upgrade during off hours to minimize the impact.

  • The Kubernetes (kURL) installer is interactive and prompts you to confirm some of the steps. Depending on the number of remote nodes in your environment, expect this part of the upgrade process to take at least two hours.

  • If you have dedicated OpenSearch nodes, you are prompted to run separate installer commands on the secondary nodes during the installation.

  • If your Jama Connect deployment fails with a HorizontalPodAutoscaler error, you must manually update the Kubernetes secret associated with the deployed Helm release and redeploy Jama Connect. See Troubleshoot PersistentVolumeAccessMode errors if Jama Connect deployment fails.

  • After upgrading to Jama Connect 9.41.x, you must perform a reindex.

  • Run the install commands inside a terminal multiplexer session to keep the session active in the event that the connection is dropped or the terminal is closed.

To update the Jama Connect KOTS platform for non-supported KOTS version (airgap):

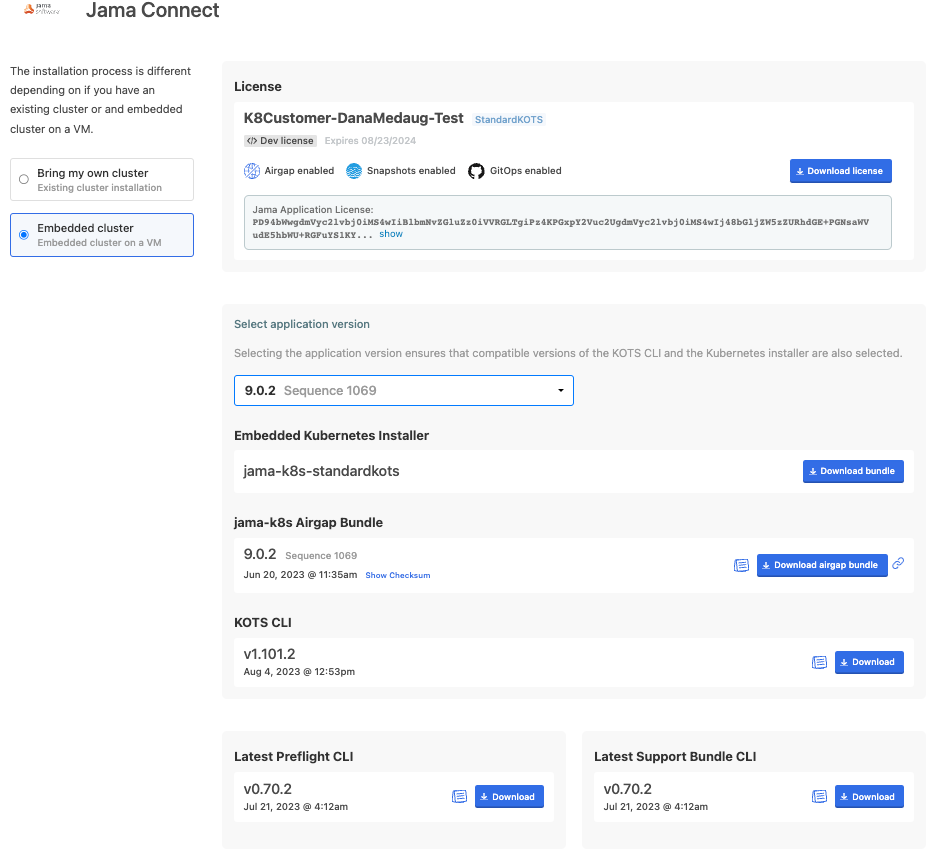

  1. Log in to the airgap portal, select Embedded Cluster, then download the Embedded Kubernetes Installer files to your local system.


  2. From an internet-enabled system, download prepare-for-longhorn-to-openebs-upgrade.sh from GitHub.

    Important

    Skip this step if you are upgrading from Jama Connect 9.0.4 and later, 8.79.7 and later, or 9.6.0 and later.

  3. On the primary node, run the shell script downloaded in step 2 as a user with adequate privileges:

    bash prepare-for-longhorn-to-openebs-upgrade.sh

    Important

    Skip this step if you are upgrading from Jama Connect 9.0.4 and later, 8.79.7 and later, or 9.6.0 and later.

  4. Extract (untar) the kURL installer:

    tar -xzvf jama-k8-standardkots.tar.gz

    The following contents are extracted: kurl directory, install.sh, join.sh, tasks.sh, and upgrade.sh scripts.

  5. Run the kURL script to ensure all required images are available:

    sudo bash tasks.sh load-images

  6. Run the kURL script to ensure all required images are available:

    kubectl delete sts elasticsearch
kubectl delete pvc volume-elasticsearch-0
kubectl label node <node-name> jamasoftware.net/service=opensearch

  7. Run the kURL installer:

    Important

    The kURL installer is interactive and prompts you to continue several times throughout the upgrade process. Kubernetes is upgraded incrementally in steps and requires you to confirm several of the steps before proceeding to the next version.

    1. From the command line on the primary node/application server, enter the following command to initiate the installation:

      sudo bash install.sh airgap

      Note

      kURL bundles and installs host packages without relying on external package repositories, except for on Red Hat Enterprise Linux 9 and Ubuntu 24. If kURL is unable to install a required host package, the output notifies you. It this occurs, manually install the missing package and then re-run the kURL installer to proceed.

    2. When the installation is complete, prepare your instance for the new Jama Connect release. This command deletes targeted KOTS resources, which is required before deploying the new version of Jama Connect.

      kubectl delete sts/activemq sts/core sts/diff sts/elasticsearch \
sts/hazelcast sts/oauth sts/saml deployment/oauth deployment/saml \
sts/search sts/nginx sts/core-ingress sts/core-reports sts/core-jobs \
jobs/tenant-manager pvc/volume-oauth-0 pvc/volume-saml-0

  8. Upgrade Jama Connect.

  9. In the KOTS Admin Console, scroll to OpenSearch Settings and enter the new OpenSearch configuration settings.

    Tip

    Refer to the Elasticsearch settings you recorded earlier in this task.


  10. Reindex all search items.

  11. Label the new OpenSearch nodes:

    kubectl label nodes <node-name> jamasoftware.net/service=opensearch

Once you've updated the Jama Connect platform, you can upgrade the application.
